Huizhou Feisite Precision Tools Co., Ltd. is one of the most reliable manufacturers and suppliers of v router bit in China, also supports customized service with reasonable price. Welcome to buy advanced v router bit in stock here from our factory. Contact us for quotation and free sample.

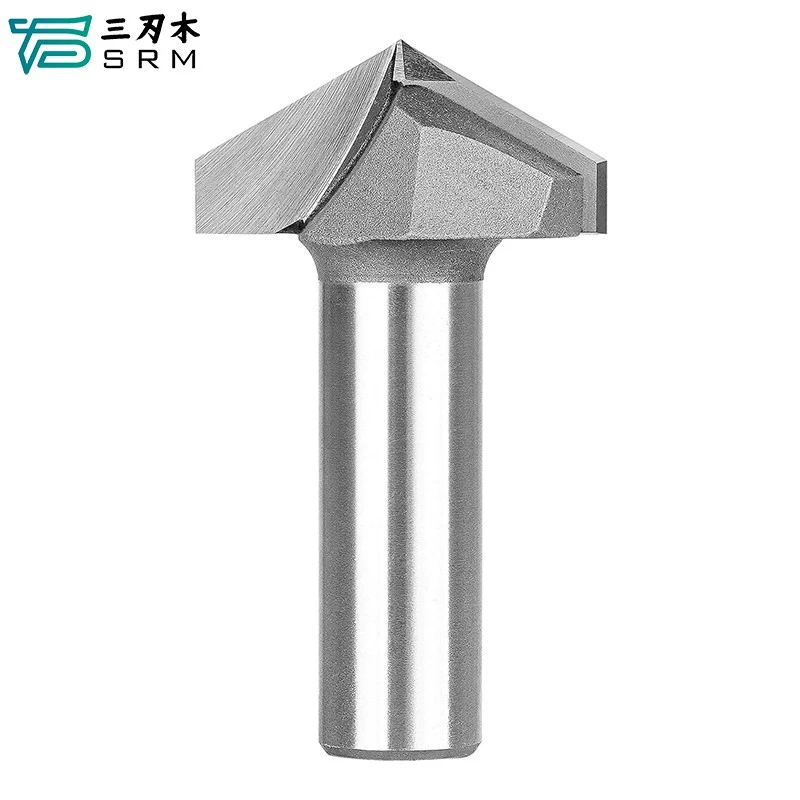

Main design of V shape router bit
→If the groove is relatively small, it is usually made of all-alloy steel. which we called solid carbide
→Larger sizes generally use a TCT structure
→For most applications, replaceable blades are generally used. or named insert blade to save cost
Purpose:
To cut decorative V-shaped grooves for sign making, adding artistic details or chamfering
Angles:
Available in different angles, such as 60° 90° 120° 150°
Materials:
Can be used on a variety of materials, including hard and soft woods, plywood, MDF, acrylics, plastics, and composites.
Construction：
Typically made from high-grade tungsten carbide alloy
Compatibility：
Can be used in both handheld/table-mounted routers and CNC machines
Size Available:
| Size | SHK | CED(D) | Angle (°) | H(mm) | H1(mm) |
| 1/4*1/4 | 6.35 | 6.35 | 90° | 6.35 | 3.175 |
| 1/4*15/16 | 6.35 | 7.96 | 90° | 7.96 | 3.95 |
| 1/4*3/8 | 6.35 | 9.52 | 90° | 9.52 | 4.76 |
| 1/4*1/2 | 6.35 | 12.70 | 90° | 12.70 | 6.35 |
| 1/4*5/8 | 6.35 | 15.90 | 90° | 15.90 | 7.95 |
| 1/4*3/4 | 6.35 | 19.05 | 90° | 17.50 | 9.52 |
| 1/4*7/8 | 6.35 | 22.20 | 90° | 22.20 | 11.10 |
| 1/2*1/4 | 12.7 | 6.35 | 90° | 6.35 | 3.175 |
| 1/2*5/16 | 12.7 | 7.96 | 90° | 7.96 | 3.98 |
| 1/2*3/8 | 12.7 | 9.52 | 90° | 9.52 | 4.76 |
| 1/2*1/2 | 12.7 | 12.70 | 90° | 12.70 | 6.35 |
| 1/2*5/8 | 12.7 | 15.90 | 90° | 15.90 | 7.95 |
| 1/2*3/4 | 12.7 | 19.05 | 90° | 17.50 | 9.52 |
| 1/2*7/8 | 12.7 | 22.20 | 90° | 22.20 | 11.10 |
| 1/2*1 | 12.7 | 25.40 | 90° | 25.40 | 12.70 |
| 1/2*1-1/8 | 12.7 | 28.60 | 90° | 26.00 | 14.30 |
| 1/2*1-1/4 | 12.7 | 31.75 | 90° | 25.50 | 15.87 |
| 1/2*1-3/8 | 12.7 | 34.90 | 90° | 25.50 | 17.45 |
| 1/2*1-1/2 | 12.7 | 38.10 | 90° | 25.50 | 19.05 |
| 1/2*1-3/4 | 12.7 | 44.50 | 90° | 30.00 | 22.25 |
| 1/2*2 | 12.7 | 50.80 | 90° | 30.00 | 25.40 |
| Size | SHK | CED(D) | Angle (°) | H(mm) |
| 1/4*1/2 | 6.35 | 12.7 | 60° | 10.9 |
| 1/4*9/16 | 6.35 | 14.28 | 60° | 12.36 |
| 1/4*19/32 | 6.35 | 15.08 | 45° | 18.2 |
| 1/4*5/8 | 6.35 | 15.9 | 60° | 13.76 |
| 1/4*3/4 | 6.35 | 19.05 | 60° | 16.48 |
| 1/2*1/2 | 12.7 | 12.7 | 60° | 10.9 |
| 1/2*9/16 | 12.7 | 14.28 | 60° | 12.36 |
| 1/2*19/32 | 12.7 | 15.08 | 45° | 18.2 |
| 1/2*5/8 | 12.7 | 15.9 | 60° | 13.76 |
| 1/2*3/4 | 12.7 | 19.05 | 60° | 16.48 |
| 1/2*7/8 | 12.7 | 22.22 | 45° | 26.79 |
| Size | SHK | CED(D) | Angle (°) | H(mm) |
| 1/2*22 | 12.7 | 22 | 120° | 16.5 |
| 1/2*32 | 12.7 | 32 | 120° | 18 |
| 1/2*40 | 12.7 | 40 | 120° | 20 |
| 1/2*50 | 12.7 | 50 | 120° | 22 |
| 1/2*63 | 12.7 | 63 | 120° | 24 |
| Size | SHK | CED(D) | Angle (°) | H(mm) |
| 1/2*22 | 12.7 | 22 | 150° | 13 |
| 1/2*32 | 12.7 | 32 | 150° | 14 |
| 1/2*40 | 12.7 | 40 | 150° | 16 |
| 1/2*50 | 12.7 | 50 | 150° | 17 |
| 1/2*63 | 12.7 | 63 | 150° | 18 |
